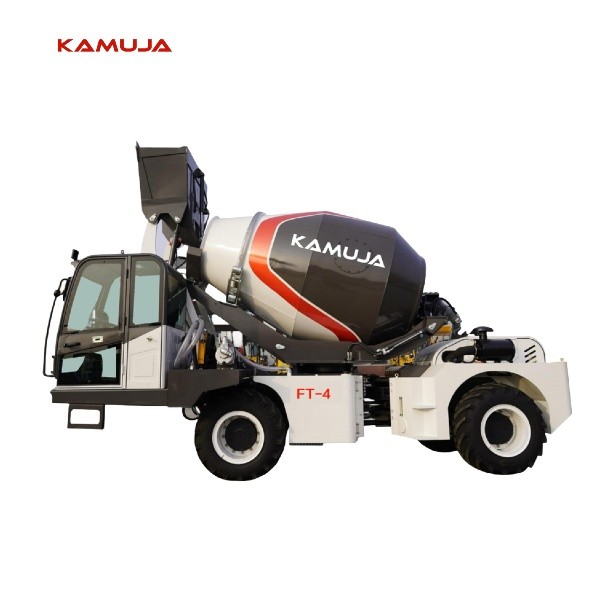

4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer

Place of Origin CHINA
Brand Name KAMUJA
Certification CNAS, IAF
Model Number FT-4
Minimum Order Quantity 1 UNIT
Price 25K-26K
Packaging Details 1 UNITS/ 40 HQ
Delivery Time 10-15 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 4 Cubic Meters/5800L Chassis Type Truck Mounted
Control System Fully Automatic Discharge Method Hydraulic, Electrical
Power Source Diesel Warranty 1 Year
Water Supply System Automatic Cool System Water-cooling,dry Air Filter
High Light

4m3 automatic concrete mixer machine

,

automatic concrete mixer machine 5800l

,

5800l trailer mounted volumetric concrete mixer

Leave a Message
Product Description

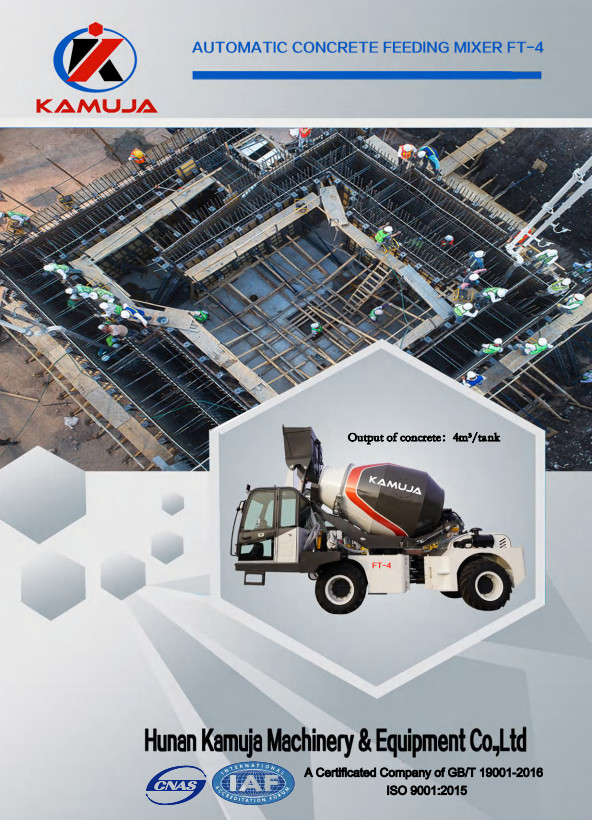

Express.Brochure.FT-4.pdf



Automatic Concrete Feeding Mixer-Output of concrete:4m³/tank

OVERALL

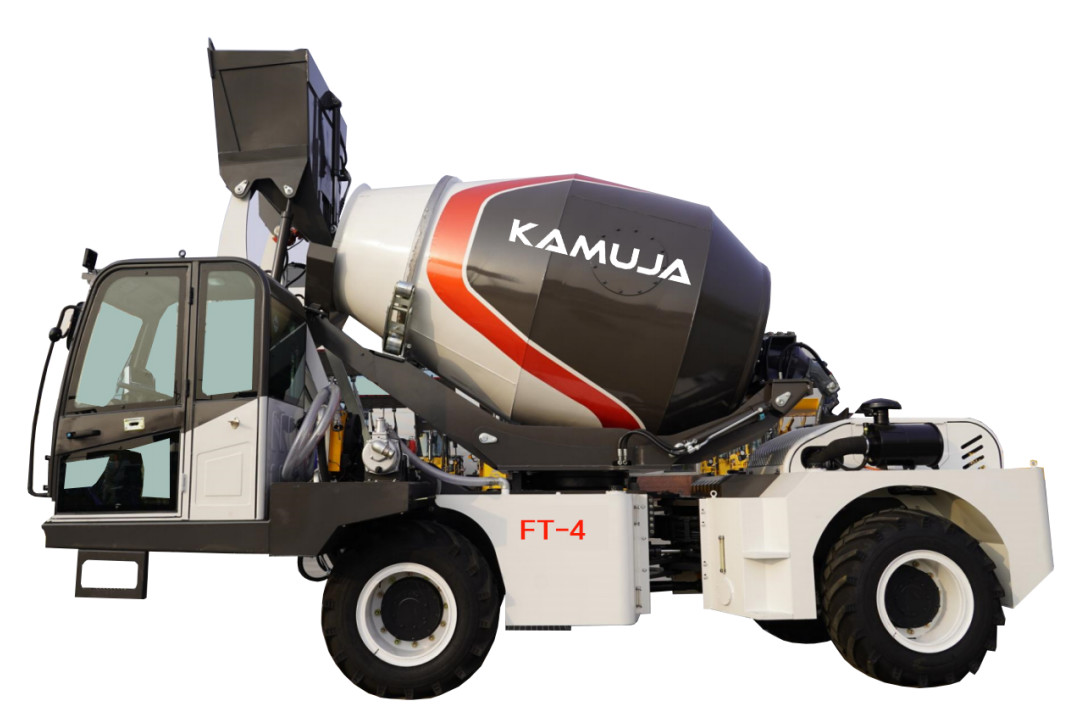

   4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer 0





SPECIFICATIONS





Item Specification Unit FT-4
Diesel Engine Type   YCD4J22T-130
Total displacement cylinders   4580cc,4-in-line
Injection   Direct injection and mechanical control
Cooling system   Water-cooling,dry air filter
Maximum power 4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer 1Kw 95
Maximum torque N-m/r/min 495/1800
Electric System Generator   28v-1260W 45A
Battery   2*12V-60AH(272A)
Speed The first high speed/second high speed Km/h 0-17/0-33
The first low speed/second low speed Km/h 0-6/0-12
Axle and Tyre Rear axle oscillating ± 10°
Tyre   18/70-20
Mixing and Unloading The geometrical volume of drum L 5800
The rotation speed of drum r/min 25
Equipment Hydraulic System Maximum flow rate ml/r 40/80
Maximum pressure Map 20
Loading Capacity 0.56
Times   8
Maintenance and Oil filling Fuel tank L 158
Total hydraulic system capacity L 158
Engine L 16
Weight Operating weight kg 7760
Max Weight kg 17760
Load-carrying capacity kg 10000
Steering Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering.
4*4 Four-Wheel Drive Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Brakes External disc brake and emergency brake acting on four wheels, independent dual circuit brake and hand-control to braking.
Water system

Hydraulic centrifugal self suction pump injection, the capacity is 14-16m³/h,

Inside : it is 150L/min.

The total capacity of two connected water tanks positioned opposite is 540L

Visual flowmeter, the water intake of the roller by hand-control.



Cab Closed cab with heating system,tilting front window, humanized seat flexible suspension and height adjustment are provided.
