Product Details:
Payment & Shipping Terms:
|
| Motor: | Electric 7.5kw*2 | Productivity: | 25cbm/h |
|---|---|---|---|
| Capacity: | 750L | Pump Power: | 0.75kw |
| Driving Type: | Rubber Wheel | Discharge Type: | Reverse Drum |
| High Light: | small concrete mixer,portable concrete mixer |
||

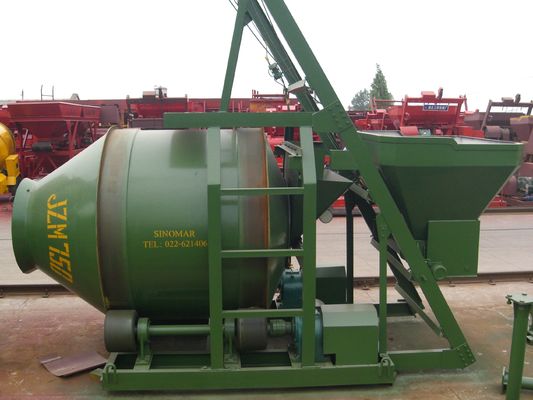

JZM series of concrete mixer is a kind of mobile and bi-pyramid reversal discharging mixer machine, which can mix plastic concrete and low flow concrete. The discharging volume of mixing tank is 0.35/0.45/0.5m³. And each mixing circle needs only 100 seconds. It is used in common construction sites, for example, the construction of road, bridge, and in small and medium-sized concrete component factory.
Performance features:
JZM series of concrete mixer, the self-fall bi-pyramid reversal discharging mixer machine, can be divided into JZM350/450/500model. JZM concrete mixer machine is designed according to GB/t9142-2000 in concrete mixers, possessing the feature of compact structure, steady running, low noise.
| Model | Power Supply | Motor Power | Pump Power | Charge Capacity | Discharge Capacity | Productivity | Dimension | Weight |
| V/hz | kw | kw | L | L | m3/h | cm | kg | |
| JZM750 | 380/50 | 7.5*2 | 0.75 | 1200 | 750 | 25 | 442*235*250 | 4500 |
